Model Name

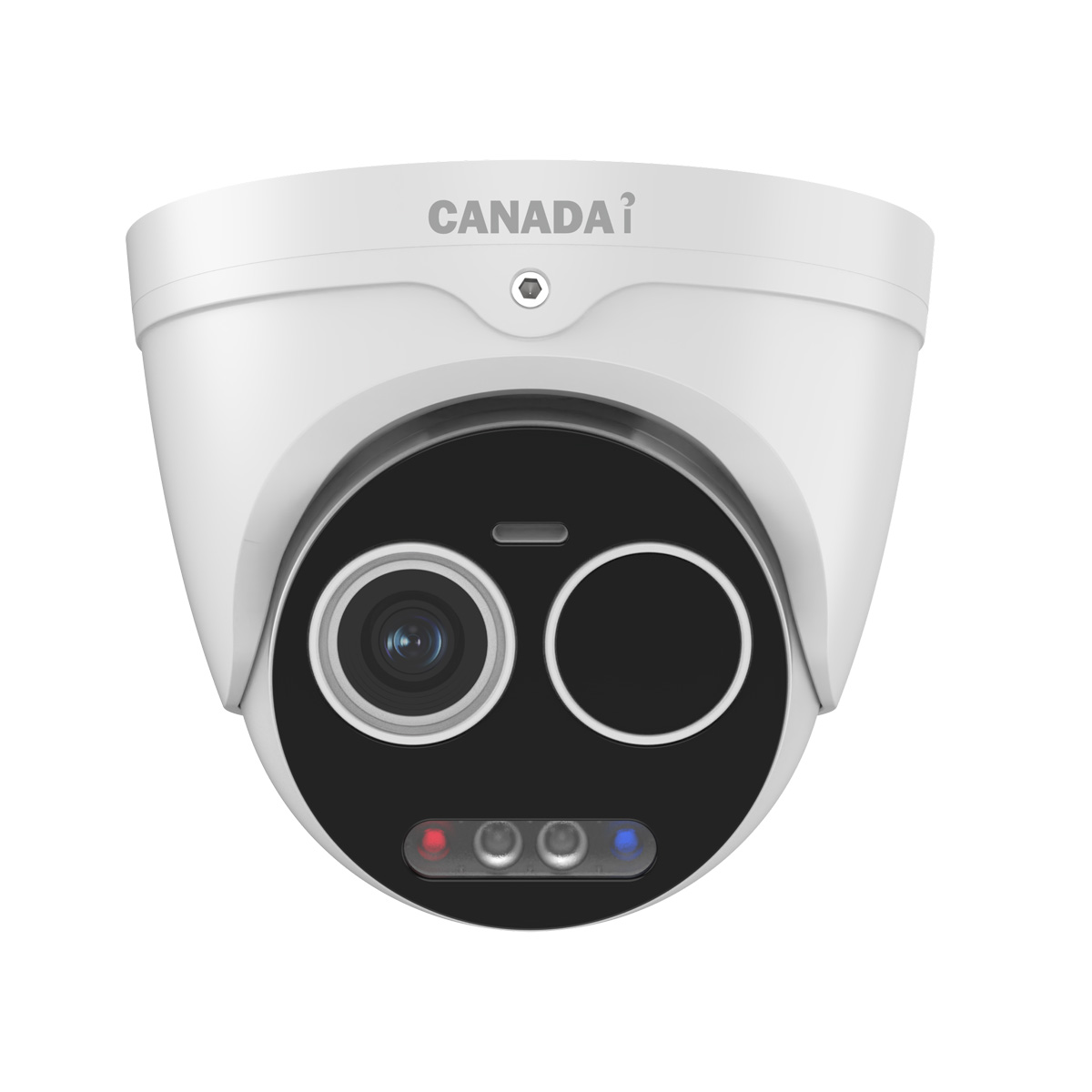

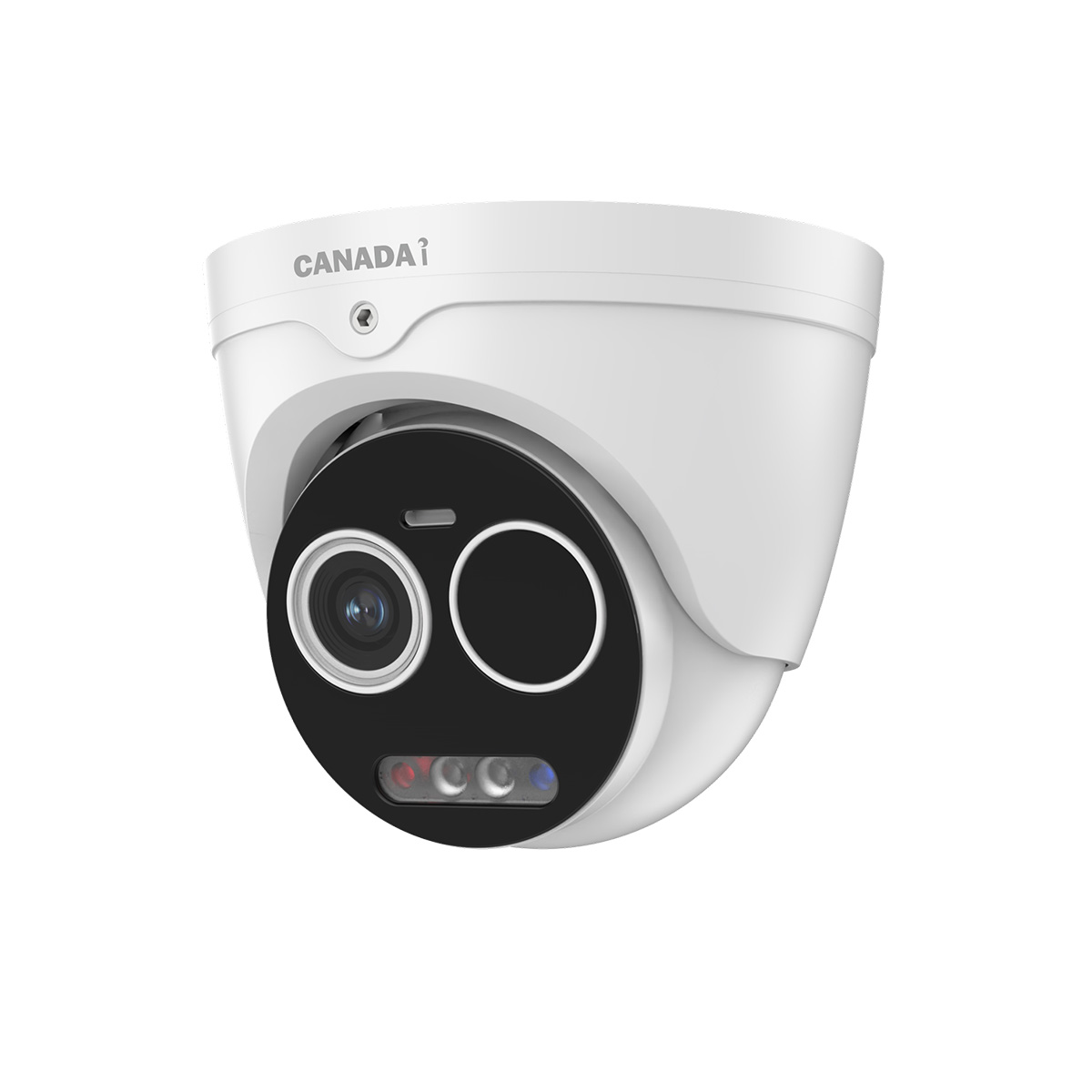

CA-NP252M8TNC-HAL-ALW3236PW

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution

256×192

Pixel Interval

12μm

Response Waveband

8-14μm

NETD
(Noise Equivalent Temperature Difference)

≤ 40 mk @ 25°C F1.0, 25Hz

Lens (Focal Length)

3.2mm

IFOV

3.75 mrad

Field of View

56°x42°

Aperture

F1.1

Imaging Device

1/2.7″

Effective Pixels

5MP 2592(H)x1944(V)

Scanning System

Progressive CMOS

Min. Illumination

Color: 0.003 Lux @(F1.6, AGC ON), B/W: 0 @IR ON

Focal Length

Fixed Lens 3.6mm

Max. Aperture Ratio

F1.6

Angular Field of View

Horizontal: 60° to 2.31°, Vertical: 35.5° to 1.3°, Diagonal: 67 .5° to 2.65°

IR LED

1pc

WarmLight

1pcs

Supplement Light Type

IR and Warm Light

Red Blue Light

2pcs (1Red & 1Blue)

IR Viewable Length

Up to 30m

Warm Light Rnage

Up to 15m

Day & Night

IR cut filter with auto switch

Bi-spectrum Image Fusion

Fusion view of thermal view and overlaid details of the optical channel

Temperature Measurement

3 temperature measurement rule types (points, areas, and line),
20 rules in total

Temperature Range

-20 °C to + 550 °C (-4 °F to + 1022°F)

Temperature Accuracy

± 3°C / 3%

Fire Detection

Yes

Wide Dynamic Range

120dB

Electronic Shutter Speed

1/5 ~ 1/20000s

On-Board Storage

Built-in Micro SD/SDHC/SDXC slot, up to 256GB

Alarm I/O

1 Input, 1 Output

Alarm Action

SD recording, Alarm Output, Smart Capture, FTP Upload, Email Linkage
Audio Alarm, Red & Blue flashing light

Audio

Built-in Microphone & Speaker

Hardware Reset

Yes

Smart Features

Optical: Intusion, Region Entrance, Region Exiting, Line Crossing,
Human & Vehicle Detection, Object Detection, Crossing Counting, Crowd Density, Queue Length, Heat Map , Rare Sound, Face Detection

Thermal: Intusion, Region Entrance, Region Exiting, Line Crossing
Detection, Fire detection, Temperature exception alarm, Human & Vehicle Detection

Main Stream

Optical: 50Hz@25fps/ 60Hz@30fps;
5MP(2592×1944), 4MP(2592×1520),
3MP(2048×1536),3MP(2304×1296),
Thermal: 50Hz/60Hz@25fps; 1280×720,640×480

Sub Stream

Optical: 50Hz@25fps/ 60Hz@30fps;
720P(1280×720), VGA(640×480), QVGA(320×240)
Thermal: 50Hz/60Hz@25fps; 640×480,320×240

Mobile Stream

Optical: 50Hz@25fps/ 60Hz@30fps;
VGA(640×480), QVGA(320×240)
Thermal: 50Hz/60Hz@25fps; 640×480,320×240

User/Host Level

6 Users, 2 Levels: Administrator, User

Security Measures

User authentication (ID and PW), HTTPS encryption, IP address filtering

Ethernet

RJ45(10/100BASE-T)

Video Compression

H.265/H.264/MJPEG/H.265+/H.264+

Audio Compression

G.711u/G.711a

Bitrate control method

CBR/VBR

Protocol

TCP/IP , HTTP , DHCP , DNS, DDNS, RTP/RTSP , SMTP , NTP , UPnP , SNMP , HTTPS, FTP

On-Board Storage

Built-in micro SD card slot (up to 512 GB)

Interface Protocol

ONVIF( Profile S/G/T/M)

Operating Temperature

-35°C to 60°C (-31°F to 140°F)

Operating Humidity

Humidity 90% or less (non-condensing)

Ingress Protection

IP67

Power

12VDC: 7 .44W/PoE: 10.9W

Housing

Metal
