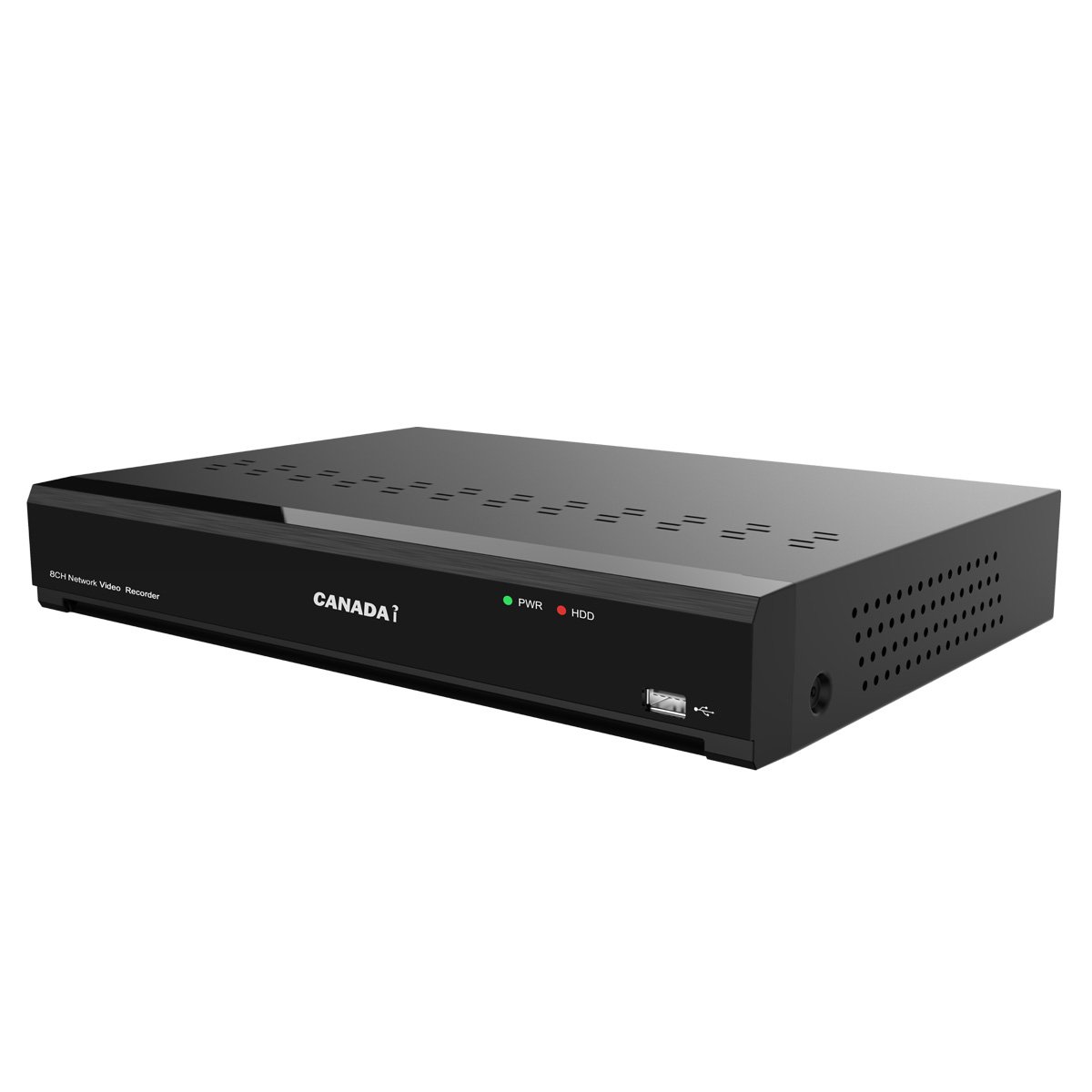

Model Name |
CA-N3208HR-PR-E |
|
|
Video |
||
|
IP Camera |
Resolution |
12MP, 8MP, 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P) |
|
IP Video Input |
8-Channel |
|
|
Recording Bandwidth |
Incoming |
128Mbps |
|
Outgoring |
128Mbps |
|
|
Performance |
||
|
Live/Playback |
Compression |
Audio: G.711a |
|
Frame rate |
4K:60fps 4MP:120fps 2MP:240ps |
|
|
Event |
MD(Sensitivity Level 1~8) |
|
|
Videlo loss |
||
|
Beep, Email, |
||
|
Playback function |
Fast forward / backward (2x, 4x, 8x,16x) |
|
|
Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
||
|
Playback |
1080P:240fps; Max 8CH Playback |
|
|
fisheye |
Use WEB CMS,device does not support |
|
|
Network |
Protocal |
ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP;UDP; Unicast; UPnP |
|
WEB |
IE10/11 |
|
|
Mobile viewer |
Yes |
|
|
Push Notification |
P2P |
|
|
Interface |
||
|
P/W Reset |
YES |
|
|
Monitors |
VGA |
1-Port (1024*768, 1280*720, 1280*1024, 1440*900) |
|
HDMI |
1-port (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 ,1600*1200/1920*1200, 2560*1440, 3840*2160/EDID) |
|
|
Connections |
PoE |
8-Port (RJ45), 802.3at/af |
|
Ethernet |
1 RJ45 10/100 Base-T |
|
|
USB |
1x USB2.0 (front), 1x USB2.0 (rear) |
|
|
HDD |
1 SATA HDD, up to 12TB |
|
|
E-SATA |
1 |
|
|
Audio |
1 Input(RCA), 1 Output (RCA) |
|
|
Alarm |
8 Input / 1 Output |
|
|
RS-485 |
1 |
|
|
AI Features |
||
|
|
Smart Motion by Camera |
SMD |
|
Perimeter intrusion, Line Crossing, Object Detection, Pedestrian & Vehicle, Face Detection, Cross Counting, Sound Detection, Video Tampering, Cross Counting, intrusion, Enter Region, Exit Region, Schedule |
||
|
Alarm |
||
|
General Alarm |
Motion Detection, PIR, Combined Alarm, PTZ Linkage, Alarm Schedule, Deterrence, Siren, Alarm Disarm |
|
|
Exceptions Alarm |
HDD Full, Disk Error, Video Loss |
|
|
General |
||
|
System |
OS |
Embedded Linux |
|
OSD Language |
English/French/Spanish/Portuguese/German/Italian/Greek/Danish/Finnish/Russia/Hebrew/Turkish/Bulgarian/Arabic/Korean/Japanese/Thai/Hindi/Romanian/Dutch/Polish |
|
|
Third-party |
RS API/Onvif (profile S/G/T) |
|
|
Installation wizard |
Yes |
|
|
Mechanical design |
Dimension (WxDxH) |
300*227*53mm |
|
Electrical |
Input Voltage/ |
DC 48V/1.5A |
|
Power consumption (excluding hard disk) |
5.28W |
|
|
Environmental |
Operating Temperature/Humidity |
Temperature: -10°C~+50°C (14°F ~ 122°F) |
